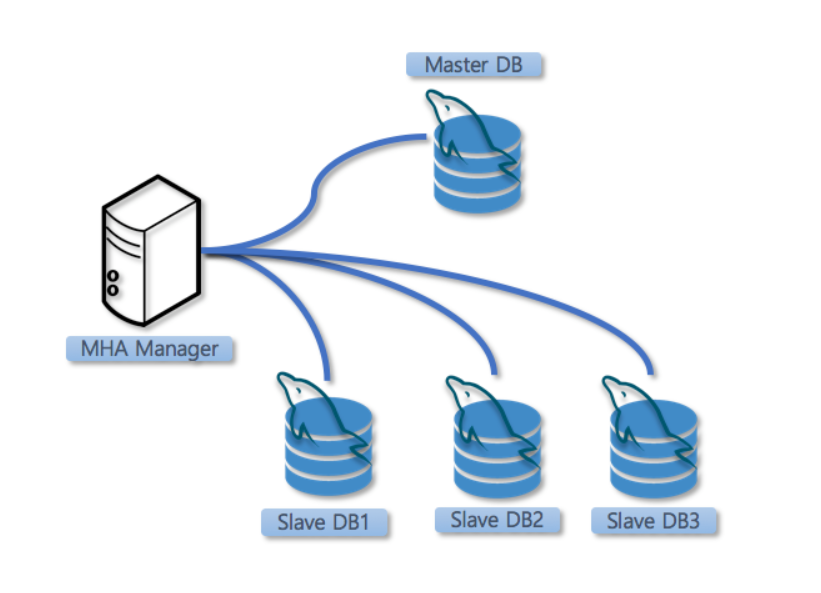

그동안 master-slave 구조에서의 mha는 2node가 보통입니다. 이번 포스팅에선 총 4node를 구성할 예정이며 master와 slave 3대를 구축하여 LB를 통해 부하분산이 최종 목표입니다.
테스트 환경
|
Hostname
|
Public IP
|
Private IP
|
DB version
|
Role
|
VIP
|
|
jh-mgr
|
115.85.183.80
|
192.168.100.35
|
|
MHA manager
|
|
|
jh-master
|
101.101.210.29
|
192.168.100.36
|
Mysql 8.0.28
|
Master
|
192.168.100.40
|
|
jh-slave1
|
49.50.161.52
|
192.168.100.37
|
Mysql 8.0.28
|
Slave
|
|
|
jh-slave2
|
118.67.131.204
|
192.168.100.38
|
Mysql 8.0.28
|
Slave
|
|
|
jh-slave3
|
27.96.131.176
|
192.168.100.39
|
Mysql 8.0.28
|
Slave
|
※ 사전 MySQL DB 설치 진행
■ my.cnf Config
<Master>
[root@jh-master ~]# vi /etc/my.cnf
[mysqld]
server-id=1
log-bin=/data/mariadb-bin
log-bin-index=/data/bin.index
expire-logs-days=7
relay-log=/data/relay-log
relay_log_purge=off
expire_logs_days=7
datadir=/data
socket=/tmp/mysql.sock
# Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0
# Settings user and group are ignored when systemd is used.
# If you need to run mysqld under a different user or group,
# customize your systemd unit file for mariadb according to the
# instructions in http://fedoraproject.org/wiki/Systemd
log-error=/log/mariadb.log
pid-file=/log/mariadb.pid
[mysqld_safe]
log-error=/log/mariadb.log
pid-file=/log/mariadb.pid
#
# include all files from the config directory
#
!includedir /etc/my.cnf.d
<Slave1,2,3>
[mysqld]
server-id=2
log-bin=/data/mariadb-bin
log-bin-index=/data/bin.index
expire-logs-days=7
relay-log=/data/relay-log
relay_log_purge=off
expire_logs_days=7
read_only=1
datadir=/data
socket=/tmp/mysql.sock
# Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0
# Settings user and group are ignored when systemd is used.
# If you need to run mysqld under a different user or group,
# customize your systemd unit file for mariadb according to the
# instructions in http://fedoraproject.org/wiki/Systemd
log-error=/log/mariadb.log
pid-file=/log/mariadb.pid
[mysqld_safe]
log-error=/log/mariadb.log
pid-file=/log/mariadb.pid
#
# include all files from the config directory
#
!includedir /etc/my.cnf.d
[mysqld]
server-id=3
log-bin=/data/mariadb-bin
log-bin-index=/data/bin.index
expire-logs-days=7
relay-log=/data/relay-log
relay_log_purge=off
expire_logs_days=7
read_only=1
datadir=/data
socket=/tmp/mysql.sock
# Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0
# Settings user and group are ignored when systemd is used.
# If you need to run mysqld under a different user or group,
# customize your systemd unit file for mariadb according to the
# instructions in http://fedoraproject.org/wiki/Systemd
log-error=/log/mariadb.log
pid-file=/log/mariadb.pid
[mysqld_safe]
log-error=/log/mariadb.log
pid-file=/log/mariadb.pid
#
# include all files from the config directory
#
!includedir /etc/my.cnf.d
[mysqld]
server-id=4
log-bin=/data/mariadb-bin
log-bin-index=/data/bin.index
expire-logs-days=7
relay-log=/data/relay-log
relay_log_purge=off
expire_logs_days=7
read_only=1
datadir=/data
socket=/tmp/mysql.sock
# Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0
# Settings user and group are ignored when systemd is used.
# If you need to run mysqld under a different user or group,
# customize your systemd unit file for mariadb according to the
# instructions in http://fedoraproject.org/wiki/Systemd
log-error=/log/mariadb.log
pid-file=/log/mariadb.pid
[mysqld_safe]
log-error=/log/mariadb.log
pid-file=/log/mariadb.pid
#
# include all files from the config directory
#
!includedir /etc/my.cnf.d
■ replication 유저 생성(모든 노드)
mysql> create user repl@'%' identified WITH mysql_native_password by 'repl';
Query OK, 0 rows affected (0.01 sec)
mysql> grant replication slave,replication client on *.* to repl@'%';
Query OK, 0 rows affected (0.01 sec)-master status(Master)
mysql> show master status;
+--------------------+----------+--------------+------------------+-------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+--------------------+----------+--------------+------------------+-------------------+
| mariadb-bin.000002 | 1030 | | | |
+--------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)
-Slave 등록 & 실행(Slave 1,2,3)
mysql> CHANGE MASTER TO MASTER_HOST='192.168.100.36', MASTER_USER='repl',MASTER_PASSWORD='repl',MASTER_PORT=3306,MASTER_LOG_FILE='mariadb-bin.000002', MASTER_LOG_POS=1030,MASTER_CONNECT_RETRY=10;
mysql> start slave;-Slave 상태 확인(Slave 1, 2, 3)
mysql> show slave status\G;
*************************** 1. row ***************************
Slave_IO_State: Waiting for source to send event
Master_Host: 192.168.100.36
Master_User: repl
Master_Port: 3306
Connect_Retry: 10
Master_Log_File: mariadb-bin.000002
Read_Master_Log_Pos: 1731
Relay_Log_File: relay-log.000002
Relay_Log_Pos: 1029
Relay_Master_Log_File: mariadb-bin.000002
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 1731
Relay_Log_Space: 1233
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 1
Master_UUID: 9dd71463-07d3-11ed-a6c4-f220cde1e464
Master_Info_File: mysql.slave_master_info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Replica has read all relay log; waiting for more updates
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set:
Executed_Gtid_Set:
Auto_Position: 0
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
Master_public_key_path:
Get_master_public_key: 0
Network_Namespace:
1 row in set, 1 warning (0.01 sec)
mysql> show slave status\G;
*************************** 1. row ***************************
Slave_IO_State: Waiting for source to send event
Master_Host: 192.168.100.36
Master_User: repl
Master_Port: 3306
Connect_Retry: 10
Master_Log_File: mariadb-bin.000002
Read_Master_Log_Pos: 1731
Relay_Log_File: relay-log.000002
Relay_Log_Pos: 1029
Relay_Master_Log_File: mariadb-bin.000002
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 1731
Relay_Log_Space: 1233
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 1
Master_UUID: 9dd71463-07d3-11ed-a6c4-f220cde1e464
Master_Info_File: mysql.slave_master_info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Replica has read all relay log; waiting for more updates
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set:
Executed_Gtid_Set:
Auto_Position: 0
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
Master_public_key_path:
Get_master_public_key: 0
Network_Namespace:
1 row in set, 1 warning (0.00 sec)
mysql> show slave status\G;
*************************** 1. row ***************************
Slave_IO_State: Waiting for source to send event
Master_Host: 192.168.100.36
Master_User: repl
Master_Port: 3306
Connect_Retry: 10
Master_Log_File: mariadb-bin.000002
Read_Master_Log_Pos: 1731
Relay_Log_File: relay-log.000002
Relay_Log_Pos: 1029
Relay_Master_Log_File: mariadb-bin.000002
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 1731
Relay_Log_Space: 1233
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 1
Master_UUID: 9dd71463-07d3-11ed-a6c4-f220cde1e464
Master_Info_File: mysql.slave_master_info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Replica has read all relay log; waiting for more updates
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set:
Executed_Gtid_Set:
Auto_Position: 0
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
Master_public_key_path:
Get_master_public_key: 0
Network_Namespace:
1 row in set, 1 warning (0.00 sec)
-Master에서 Slave 조회
mysql> show slave hosts\G;
*************************** 1. row ***************************
Server_id: 2
Host:
Port: 3306
Master_id: 1
Slave_UUID: aa511e17-07d3-11ed-aea9-f220cda626a6
*************************** 2. row ***************************
Server_id: 3
Host:
Port: 3306
Master_id: 1
Slave_UUID: 87cf362c-07e1-11ed-b7f8-f220cd646c8a
*************************** 3. row ***************************
Server_id: 4
Host:
Port: 3306
Master_id: 1
Slave_UUID: 9dd5ca74-07d3-11ed-a50d-f220cd8a1dd8
3 rows in set, 1 warning (0.00 sec)
■ VIP 생성(Master, Slave 1,2,3)
띄어 놓는건 Master에만 띄어놓습니다.
[root@jh-master ~]# vi /etc/sysconfig/network-scripts/ifcfg-eth1:1
[root@jh-master ~]# /etc/sysconfig/network-scripts/ifup ifcfg-eth1:1
[root@jh-master ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 10.41.216.208 netmask 255.255.254.0 broadcast 10.41.217.255
ether f2:20:cd:e1:e4:64 txqueuelen 1000 (Ethernet)
RX packets 282998 bytes 1286099185 (1.1 GiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 188056 bytes 21221577 (20.2 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.100.36 netmask 255.255.255.0 broadcast 192.168.100.255
ether f2:d7:cf:cc:bb:f0 txqueuelen 1000 (Ethernet)
RX packets 28340 bytes 1433805 (1.3 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 2539 bytes 277764 (271.2 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1:1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.100.40 netmask 255.255.255.0 broadcast 192.168.100.255
ether f2:d7:cf:cc:bb:f0 txqueuelen 1000 (Ethernet)
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
loop txqueuelen 1 (Local Loopback)
RX packets 12 bytes 1164 (1.1 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 12 bytes 1164 (1.1 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
■ MHA 필수 패키지 설치 (모든 노드)
[root@jh-master ~]# yum -y install epel*
[root@jh-master ~]# yum install -y epel perl-devel perl-CPAN perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-Parallel-ForkManager perl-Module-Install
■ SSh 설정(모든 노드)
[root@jh-master ~]# vi /etc/ssh/sshd_config
PermitRootLogin yes
[root@jh-master ~]# ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
d3:56:44:0e:4d:52:17:93:64:31:25:3c:6f:d9:72:52 root@jh-master
The key's randomart image is:
+--[ RSA 2048]----+
| o==oX=.|
| =.o++E|
| o +o|
| . . o.=|
| S o = |
| o |
| |
| |
| |
+-----------------+
[root@jh-master ~]# chmod 700 ~/.ssh
[root@jh-master ~]# chmod 600 ~/.ssh/id_rsa
[root@jh-master ~]# chmod 644 ~/.ssh/id_rsa.pub
[root@jh-master ~]# cat ~/.ssh/id_rsa.pub > ~/.ssh/authorized_keys
[root@jh-master ~]# chmod 644 ~/.ssh/authorized_keys
## 각 노드별 Public key 공유
[root@jh-mgr .ssh]# vi authorized_keys
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC6/zs03al+j0Bf/i3IvtaqbA2or/4Rsb1VwB1LIHRSxDyVrYS+bQsiJBOA/qlOYiFMCSPUSQx3PWJNgeT/HqsEznUutpEqgnM/i7D3946w4X87laExWJ3veNd5No8WchX3ol8HxHaF5WH8mgXB7Sj+zoB5Xw2pDnjlCaCdZGc73OUYeW2shSm7eCgrCltLM0tEhUo72sbcJhvGEN/PvEpFsicHwLBy/UFbx4ZY3Ow5WYRi3VF4CI3pLOwcHmsR6eewh3a4IA4CLiy6G744ziyJvkZMVFs2zWOwxjlKeVudcM0k6axkzix4iAy+vOMy7ZzgtrVIcCrSqR5GFgfkzX9h root@jh-mgr
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDgv9r7c/inJus0WqGs/5u+EKZyPNSO+76Me2D4gTct+8in7ml6SaMQWGbS+JbquFnoTKXWRuZ703LNWC1koY2ATW+7IEWPh6VcA+FxCEB7oYDeUPm1zSVm9IypAKgq2NcUuzZJWMnpRuLwKm7F03iwC7EBwTdr05LXF+QRY1xaIoGFtH5GhWreCc2AcsCCUfuDtZp+25f4RTfv9CWjEHdU2Qd0hD57OOfU2OQ866LQgySn7XymU5zwl3wyQUVV6MSuGkaKcGpVhxR1KQfnvNr3FTjDh2XQMG4czEOaQ+6Sp9DeJTXA0kQp4O04X3NfIlgjPW0MZbyOxSgbzS6t1uL5 root@jh-master
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDifiOMYKLP787SFjSlCc8DLNkA34nZ+QrWsRXGpNgNhztxaCGtK4ru/8YuwgqjkODH8Gmwz0VVSsrNAhtw1ARv4Sd+oSKB6vX/fxkYPeI6fDqsP4E1gUNMtrjfj5sArQS1Qkmrp7ZipqGC2Ir3M4MGEzXBfLrEZku3hCxtXz8m7pXGVpTzOvfZU+Zkizad21eqnUUpkmsklqNxZrRGcikvqJhs8g/qTowFK7/m+JsYt8U1llojtUnJLgfO6UVbUaOllvcEpBwZk5CqK/7XiVgxTNJc4HmCb1w9BRndUIouC+qkDrclTYxYh6t9UOO7z2W3dOXDkAwTYKYHfyKRj1wR root@jh-slave1
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCyWG0YbJ/QQVnsuxyV4PHxodINTrJodem9MNbhNyJQYiYdAavnWBMO1D60+eeIi0fUX9UA+Ptsg6b1mlRy9wIaY1K1KqZieqAMR3HH4qg9fc+JQJzuAbXgeWGBnbqzfrMgD1PrIND3jhBxgrV4h+vMXSBdwBZ6QKCOOKqSygJk03PmB6vXG+HunQ27BE1xUMft7AP6fdw5kX4LgM9AmYuAJ+Wc5bN+twaV8fWWjR4PLLGpgqCnNidPyohIoiccd3tdftuZfm2nshpNZAcwvX/1m0zJ+vYSh1F5w2dSiXSFyUpNExIfqzkJ7msIEC3TdVkO6YvnPb1ETvarOtRtdhkv root@jh-slave2
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC8zRiaVvzWiLKMqlaTokDUbPZDN5IUWjIYSpnvPqtLFmluXnl9A6qVMaLS82BQHnAJmiNKBNGFkdZFPcEvrPl1vm4H8SoPs8xvDVSXMQp90DZaIAu+vwiVJlwClaO5QKj88CbFiRn33mJxLJ3chjxGhDsflOQybGd2xA1+LG6sp5GCZVm09IRfmveSrtGFF6oOAwARyP0Tus0Z+JvKXtwH/GYBwnEUcke406JO+2RY0Nv571bAcBssyS7T5c/tzlzluX6c2YL7Ie7PmGpoZrOaCTXcu+m/y8E50aI0VGTRS9dxJLMWI4u4uRKSloViFMbQpgZG65OwZ1UVqy5CUuB3 root@jh-slave3
[root@jh-mgr .ssh]# systemctl restart sshd
## 패스워드 없이 접속 가능 여부 확인
[root@jh-mgr ~]# ssh 192.168.100.36
[root@jh-mgr ~]# ssh 192.168.100.37
[root@jh-mgr ~]# ssh 192.168.100.38
[root@jh-mgr ~]# ssh 192.168.100.39■ mha4mysql-node 컴파일 & 인스톨 (모든서버)
[root@jh-mgr ~]# tar -zxvf mha4mysql-node-0.57.tar.gz
[root@jh-mgr ~]# cd mha4mysql-node-0.57/
[root@jh-mgr mha4mysql-node-0.57]# perl Makefile.PL
[root@jh-mgr mha4mysql-node-0.57]# make && make install
■ mha4mysql-manager 컴파일 & 인스톨 (Manager)
[root@jh-mgr ~]# tar -zxvf mha4mysql-manager-0.57.tar.gz
[root@jh-mgr ~]# cd mha4mysql-manager-0.57/
[root@jh-mgr mha4mysql-manager-0.57]# cpan YAML
[root@jh-mgr mha4mysql-manager-0.57]# perl -MCPAN -e "install File::Remove"
[root@jh-mgr mha4mysql-manager-0.57]# perl -MCPAN -e "install Build"
[root@jh-mgr mha4mysql-manager-0.57]# perl -MCPAN -e "install Module::Install"
[root@jh-mgr mha4mysql-manager-0.57]# perl -MCPAN -e "install Net::Telnet"
[root@jh-mgr mha4mysql-manager-0.57]# perl -MCPAN -e "install Log::Dispatch"
[root@jh-mgr mha4mysql-manager-0.57]# perl Makefile.PL
[root@jh-mgr mha4mysql-manager-0.57]# make && make install
■ MHA Configure (Manager)
[root@jh-mgr ~]# vi ~/.bash_profile
# .bash_profile
# Get the aliases and functions
if [ -f ~/.bashrc ]; then
. ~/.bashrc
fi
# User specific environment and startup programs
PATH=$PATH:$HOME/bin
export PATH
alias sshcheck='/usr/local/bin/masterha_check_ssh --conf=/etc/mha.cnf'
alias replcheck='/usr/local/bin/masterha_check_repl --conf=/etc/mha.cnf'
alias start='/usr/local/bin/masterha_manager --conf=/etc/mha.cnf &'
alias stop='/usr/local/bin/masterha_stop --conf=/etc/mha.cnf'
alias status='/usr/local/bin/masterha_check_status --conf=/etc/mha.cnf'
alias log='tail -f /var/log/masterha/app1/app1.log'
[root@jh-mgr ~]# cp /root/mha4mysql-manager-0.57/samples/conf/app1.cnf /etc/mha.cnf
[root@jh-mgr ~]# mkdir /mha
[root@jh-mgr ~]# vi /etc/mha.cnf
[server default]
user=repl
password=repl
ssh_user=root
# working directory on the manager
manager_workdir=/var/log/masterha/app1
# manager log file
manager_log=/var/log/masterha/app1/app1.log
# working directory on MySQL servers
remote_workdir=/var/log/masterha/app5
repl_user=repl
repl_password=repl
master_binlog_dir=/data
#ping interval, 3 times trial
ping_interval=5
#custom scripts for master ip failover
master_ip_failover_script=/var/log/masterha/app1/custom_scripts/master_ip_failover
#custom scripts for shutdown using fencing network custom script
#shutdown_script=/var/log/masterha/app1/custom_scripts/power_manager
#custom scripts for manual master switch
master_ip_online_change_script=/var/log/masterha/app1/custom_scripts/master_ip_online_change
[server1]
hostname=192.168.100.36
port=3306
ignore_fail=1
[server2]
hostname=192.168.100.37
port=3306
ignore_fail=1
[server3]
hostname=192.168.100.38
port=3306
ignore_fail=1
[server4]
hostname=192.168.100.39
port=3306
ignore_fail=1
[root@jh-mgr ~]# mkdir -p /var/log/masterha/app1/custom_scripts
[root@jh-mgr ~]# mkdir /var/log/masterha/app5
■ sshcheck
[root@jh-mgr ~]# sshcheck
Wed Jul 20 14:25:52 2022 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Jul 20 14:25:52 2022 - [info] Reading application default configuration from /etc/mha.cnf..
Wed Jul 20 14:25:52 2022 - [info] Reading server configuration from /etc/mha.cnf..
Wed Jul 20 14:25:52 2022 - [info] Starting SSH connection tests..
Wed Jul 20 14:25:53 2022 - [debug]
Wed Jul 20 14:25:52 2022 - [debug] Connecting via SSH from root@192.168.100.36(192.168.100.36:22) to root@192.168.100.37(192.168.100.37:22)..
Warning: Permanently added '192.168.100.37' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:53 2022 - [debug] ok.
Wed Jul 20 14:25:53 2022 - [debug] Connecting via SSH from root@192.168.100.36(192.168.100.36:22) to root@192.168.100.38(192.168.100.38:22)..
Warning: Permanently added '192.168.100.38' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:53 2022 - [debug] ok.
Wed Jul 20 14:25:53 2022 - [debug] Connecting via SSH from root@192.168.100.36(192.168.100.36:22) to root@192.168.100.39(192.168.100.39:22)..
Warning: Permanently added '192.168.100.39' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:53 2022 - [debug] ok.
Wed Jul 20 14:25:54 2022 - [debug]
Wed Jul 20 14:25:53 2022 - [debug] Connecting via SSH from root@192.168.100.37(192.168.100.37:22) to root@192.168.100.36(192.168.100.36:22)..
Warning: Permanently added '192.168.100.36' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:53 2022 - [debug] ok.
Wed Jul 20 14:25:53 2022 - [debug] Connecting via SSH from root@192.168.100.37(192.168.100.37:22) to root@192.168.100.38(192.168.100.38:22)..
Warning: Permanently added '192.168.100.38' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:53 2022 - [debug] ok.
Wed Jul 20 14:25:53 2022 - [debug] Connecting via SSH from root@192.168.100.37(192.168.100.37:22) to root@192.168.100.39(192.168.100.39:22)..
Warning: Permanently added '192.168.100.39' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:54 2022 - [debug] ok.
Wed Jul 20 14:25:54 2022 - [debug]
Wed Jul 20 14:25:53 2022 - [debug] Connecting via SSH from root@192.168.100.38(192.168.100.38:22) to root@192.168.100.36(192.168.100.36:22)..
Warning: Permanently added '192.168.100.38' (ECDSA) to the list of known hosts.
Warning: Permanently added '192.168.100.36' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:54 2022 - [debug] ok.
Wed Jul 20 14:25:54 2022 - [debug] Connecting via SSH from root@192.168.100.38(192.168.100.38:22) to root@192.168.100.37(192.168.100.37:22)..
Warning: Permanently added '192.168.100.37' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:54 2022 - [debug] ok.
Wed Jul 20 14:25:54 2022 - [debug] Connecting via SSH from root@192.168.100.38(192.168.100.38:22) to root@192.168.100.39(192.168.100.39:22)..
Warning: Permanently added '192.168.100.39' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:54 2022 - [debug] ok.
Wed Jul 20 14:25:55 2022 - [debug]
Wed Jul 20 14:25:54 2022 - [debug] Connecting via SSH from root@192.168.100.39(192.168.100.39:22) to root@192.168.100.36(192.168.100.36:22)..
Warning: Permanently added '192.168.100.39' (ECDSA) to the list of known hosts.
Warning: Permanently added '192.168.100.36' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:54 2022 - [debug] ok.
Wed Jul 20 14:25:54 2022 - [debug] Connecting via SSH from root@192.168.100.39(192.168.100.39:22) to root@192.168.100.37(192.168.100.37:22)..
Warning: Permanently added '192.168.100.37' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:54 2022 - [debug] ok.
Wed Jul 20 14:25:54 2022 - [debug] Connecting via SSH from root@192.168.100.39(192.168.100.39:22) to root@192.168.100.38(192.168.100.38:22)..
Warning: Permanently added '192.168.100.38' (ECDSA) to the list of known hosts.
Wed Jul 20 14:25:54 2022 - [debug] ok.
Wed Jul 20 14:25:55 2022 - [info] All SSH connection tests passed successfully.
Use of uninitialized value in exit at /usr/local/bin/masterha_check_ssh line 44.
■ 심볼릭 링크 생성(Master, Slave 1,2,3)
[root@jh-master ~]# ln -s /mysql/bin/mysqlbinlog /usr/bin/mysqlbinlog
[root@jh-master ~]# ln -s /mysql/bin/mysql /usr/bin/mysql
■ replcheck
[root@jh-mgr ~]# replcheck
Wed Jul 20 14:39:28 2022 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Jul 20 14:39:28 2022 - [info] Reading application default configuration from /etc/mha.cnf..
Wed Jul 20 14:39:28 2022 - [info] Reading server configuration from /etc/mha.cnf..
Wed Jul 20 14:39:28 2022 - [info] MHA::MasterMonitor version 0.57.
Wed Jul 20 14:39:29 2022 - [info] GTID failover mode = 0
Wed Jul 20 14:39:29 2022 - [info] Dead Servers:
Wed Jul 20 14:39:29 2022 - [info] Alive Servers:
Wed Jul 20 14:39:29 2022 - [info] 192.168.100.36(192.168.100.36:3306)
Wed Jul 20 14:39:29 2022 - [info] 192.168.100.37(192.168.100.37:3306)
Wed Jul 20 14:39:29 2022 - [info] 192.168.100.38(192.168.100.38:3306)
Wed Jul 20 14:39:29 2022 - [info] 192.168.100.39(192.168.100.39:3306)
Wed Jul 20 14:39:29 2022 - [info] Alive Slaves:
Wed Jul 20 14:39:29 2022 - [info] 192.168.100.37(192.168.100.37:3306) Version=8.0.28 (oldest major version between slaves) log-bin:enabled
Wed Jul 20 14:39:29 2022 - [info] Replicating from 192.168.100.36(192.168.100.36:3306)
Wed Jul 20 14:39:29 2022 - [info] 192.168.100.38(192.168.100.38:3306) Version=8.0.28 (oldest major version between slaves) log-bin:enabled
Wed Jul 20 14:39:29 2022 - [info] Replicating from 192.168.100.36(192.168.100.36:3306)
Wed Jul 20 14:39:29 2022 - [info] 192.168.100.39(192.168.100.39:3306) Version=8.0.28 (oldest major version between slaves) log-bin:enabled
Wed Jul 20 14:39:29 2022 - [info] Replicating from 192.168.100.36(192.168.100.36:3306)
Wed Jul 20 14:39:29 2022 - [info] Current Alive Master: 192.168.100.36(192.168.100.36:3306)
Wed Jul 20 14:39:29 2022 - [info] Checking slave configurations..
Wed Jul 20 14:39:29 2022 - [info] read_only=1 is not set on slave 192.168.100.37(192.168.100.37:3306).
Wed Jul 20 14:39:29 2022 - [info] read_only=1 is not set on slave 192.168.100.38(192.168.100.38:3306).
Wed Jul 20 14:39:29 2022 - [info] read_only=1 is not set on slave 192.168.100.39(192.168.100.39:3306).
Wed Jul 20 14:39:29 2022 - [info] Checking replication filtering settings..
Wed Jul 20 14:39:29 2022 - [info] binlog_do_db= , binlog_ignore_db=
Wed Jul 20 14:39:29 2022 - [info] Replication filtering check ok.
Wed Jul 20 14:39:29 2022 - [info] GTID (with auto-pos) is not supported
Wed Jul 20 14:39:29 2022 - [info] Starting SSH connection tests..
Wed Jul 20 14:39:32 2022 - [info] All SSH connection tests passed successfully.
Wed Jul 20 14:39:32 2022 - [info] Checking MHA Node version..
Wed Jul 20 14:39:32 2022 - [info] Version check ok.
Wed Jul 20 14:39:32 2022 - [info] Checking SSH publickey authentication settings on the current master..
Wed Jul 20 14:39:32 2022 - [info] HealthCheck: SSH to 192.168.100.36 is reachable.
Wed Jul 20 14:39:32 2022 - [info] Master MHA Node version is 0.57.
Wed Jul 20 14:39:32 2022 - [info] Checking recovery script configurations on 192.168.100.36(192.168.100.36:3306)..
Wed Jul 20 14:39:32 2022 - [info] Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data --output_file=/var/log/masterha/app5/save_binary_logs_test --manager_version=0.57 --start_file=mariadb-bin.000002
Wed Jul 20 14:39:32 2022 - [info] Connecting to root@192.168.100.36(192.168.100.36:22)..
Creating /var/log/masterha/app5 if not exists.. ok.
Checking output directory is accessible or not..
ok.
Binlog found at /data, up to mariadb-bin.000002
Wed Jul 20 14:39:33 2022 - [info] Binlog setting check done.
Wed Jul 20 14:39:33 2022 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers..
Wed Jul 20 14:39:33 2022 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user='repl' --slave_host=192.168.100.37 --slave_ip=192.168.100.37 --slave_port=3306 --workdir=/var/log/masterha/app5 --target_version=8.0.28 --manager_version=0.57 --relay_dir=/data --current_relay_log=relay-log.000002 --slave_pass=xxx
Wed Jul 20 14:39:33 2022 - [info] Connecting to root@192.168.100.37(192.168.100.37:22)..
Checking slave recovery environment settings..
Relay log found at /data, up to relay-log.000002
Temporary relay log file is /data/relay-log.000002
Testing mysql connection and privileges..mysql: [Warning] Using a password on the command line interface can be insecure.
done.
Testing mysqlbinlog output.. done.
Cleaning up test file(s).. done.
Wed Jul 20 14:39:33 2022 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user='repl' --slave_host=192.168.100.38 --slave_ip=192.168.100.38 --slave_port=3306 --workdir=/var/log/masterha/app5 --target_version=8.0.28 --manager_version=0.57 --relay_dir=/data --current_relay_log=relay-log.000002 --slave_pass=xxx
Wed Jul 20 14:39:33 2022 - [info] Connecting to root@192.168.100.38(192.168.100.38:22)..
Checking slave recovery environment settings..
Relay log found at /data, up to relay-log.000002
Temporary relay log file is /data/relay-log.000002
Testing mysql connection and privileges..mysql: [Warning] Using a password on the command line interface can be insecure.
done.
Testing mysqlbinlog output.. done.
Cleaning up test file(s).. done.
Wed Jul 20 14:39:33 2022 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user='repl' --slave_host=192.168.100.39 --slave_ip=192.168.100.39 --slave_port=3306 --workdir=/var/log/masterha/app5 --target_version=8.0.28 --manager_version=0.57 --relay_dir=/data --current_relay_log=relay-log.000002 --slave_pass=xxx
Wed Jul 20 14:39:33 2022 - [info] Connecting to root@192.168.100.39(192.168.100.39:22)..
Checking slave recovery environment settings..
Relay log found at /data, up to relay-log.000002
Temporary relay log file is /data/relay-log.000002
Testing mysql connection and privileges..mysql: [Warning] Using a password on the command line interface can be insecure.
done.
Testing mysqlbinlog output.. done.
Cleaning up test file(s).. done.
Wed Jul 20 14:39:33 2022 - [info] Slaves settings check done.
Wed Jul 20 14:39:33 2022 - [info]
192.168.100.36(192.168.100.36:3306) (current master)
+--192.168.100.37(192.168.100.37:3306)
+--192.168.100.38(192.168.100.38:3306)
+--192.168.100.39(192.168.100.39:3306)
Wed Jul 20 14:39:33 2022 - [info] Checking replication health on 192.168.100.37..
Wed Jul 20 14:39:33 2022 - [info] ok.
Wed Jul 20 14:39:33 2022 - [info] Checking replication health on 192.168.100.38..
Wed Jul 20 14:39:33 2022 - [info] ok.
Wed Jul 20 14:39:33 2022 - [info] Checking replication health on 192.168.100.39..
Wed Jul 20 14:39:33 2022 - [info] ok.
Wed Jul 20 14:39:33 2022 - [warning] master_ip_failover_script is not defined.
Wed Jul 20 14:39:33 2022 - [warning] shutdown_script is not defined.
Wed Jul 20 14:39:33 2022 - [info] Got exit code 0 (Not master dead).
MySQL Replication Health is OK.
part 2에서 이어서 스크립트 수정 후 테스트 진행하겠습니다.
참고 & 사진 출처
https://hoing.io/archives/9175
MySQL MHA(Master High Availability) 1 - MHA 기능 설명 및 아키텍처 설명
hoing.io
'DataBase > MySQL & MariaDB' 카테고리의 다른 글
| [MySQL - 4node MHA & select 부하분산] use. NCP Loadbalancer (0) | 2022.07.30 |
|---|---|
| [MySQL - 4node MHA 구축 & failover테스트] part 2. (0) | 2022.07.30 |
| [MariaDB - Maxscale GUI 구성] (0) | 2022.07.30 |
| [MariaDB - Galera Cluster & ProxySQL read/write split] (0) | 2022.07.30 |
| [MySQL - NCP & OCI 이기종 플랫폼] part 2. 무중단 이관 (0) | 2022.07.30 |
